Name: BS EN102191 Structural ERW Hollow Section Steel Tube
Brand: New-Era
Price: 1 USD

Add to Cart

BS EN10219-1 Structural Hollow Section Steel Tube

EN 10219-1 specified for Cold formed welded structural hollow sections of non-alloy and fine grain steels

Garde:S235JRH,S275J0H,S275J2H,S355J0H,S355J2H,S355K2H

Type:Electric resistance welded(ERW)

Steel grade		% by mass, maximum
Steel name	Steel number	C	Si	Mn	P	S	N b
S235JRH	1.0039	0,17	—	1,40	0,040	0,040	0.009
S275J0H	1.0149	0,20	—	1,50	0,035	0,035	0,009
S275J2H	1.0138	0,20	—	1,50	0,030	0,030	—
S355J0H	1.0547	0,22	0,55	1,60	0,035	0,035	0,009
S355J2H	1.0576	0,22	0,55	1,60	0,030	0,030	—
S355K2H	1.0512	0,22	0,55	1,60	0,030	0,030	—
a. The deoxidation method is designated as follows: FF: Fully killed steel containing nitrogen binding elements in amounts sufficient to bind available nitrogen (e.g. min. 0,020 % total Al or 0,015 % soluble Al). b. The maximum value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0,020 % with a minimum Al/N ratio of 2:1, or if sufficient other N-binding elements are present. The N-binding elements shall be recorded in the Inspection Document.

Mechanical propertites of non-alloy steel hollow sections in thicknesses≤40mm
Steel grade		Minimum yield strength MPa		Tensile strength MPa		Minimum elongation %	Minimum impact energy J
Steel name	Steel number
		Specified thickness ,mm		Specified thickness ,mm		Specified thickness ,mm	at test temperature of

		≤16	>16≤40	<3	≥3≤40	≤40	-20℃	0℃	20℃
S235JRH	1.0039	235	225	360-510	360-510	24	-	-	27
S275J0H	1.0149	275	265	430-580	410-560	20	-	27	-
S275J2H	1.0138						27	-	-
S355J0H	1.0547	355	345	510-680	470-630	20	-	27	-
S355J2H	1.0576						27	-	-
S355K2H	1.0512						40	-	-

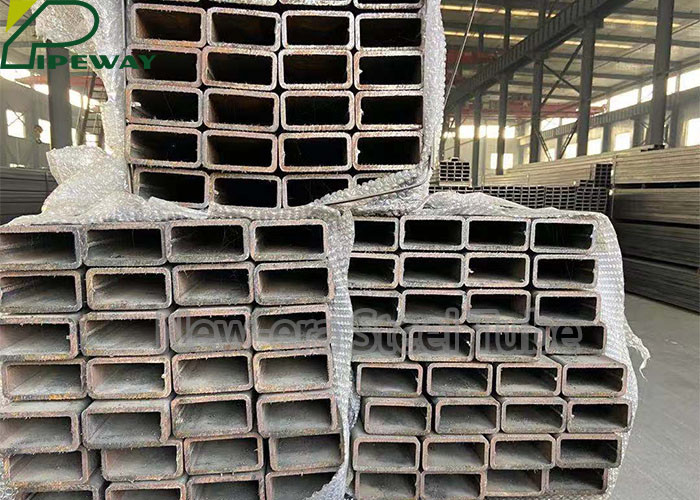

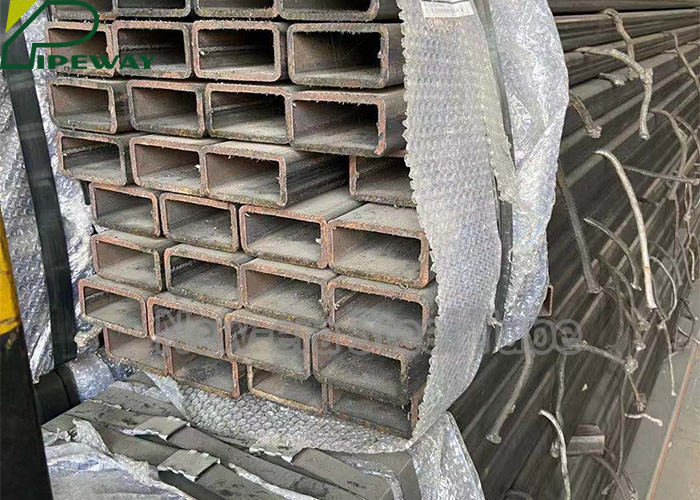

Product pictures:

BS EN10219-1 Structural ERW Hollow Section Steel Tube

TIPS:Rectangle steel tubing,square steel pipe,profile round pipes,Non-alloy steel tubing,

fine grain steel tubes,Structural rectangle tube
