Surface Condencers Red Precision Copper Pipes C12000
ASTM B111/B111M
For alloys in which copper is listed as"remainder",copper is the difference between the sum results of all the
elements determined and 100%,When all elements in Table 1 are detemined,the sum of the results shall be
as follows:

Temper:
1.Copper tubes shall be furnisher in the temper designations identified in Tables 2 and 3
2.Drawn tempers H55 and H80
3.Annealed temper O61
4.Drawn and stress-relieved temper HR50
5.Copper tubes for ferrule stock shall be annealed sufficiently to be fully recrystallized.
Chemmical Requirements

Brass Pipe have strong, corrosion resistant properties, and become a modern contractor in all

of commodity house pipes,heating, cooling water piping installation of choice.Widely used for

air-conditioning and refrigeration field service,heat exchange use,connecting tubes,distribution,

fire protection,solar,natural gas,liquefied petroleum gas,vent piping.

Nondestructive Testing

1.Unless nondestructive testing has been waived,Brass tubesshall be subjected to a nondestructive test.T

he manufacturer shall select the nondestructive test that is most suitable for the tube size and the application

2.Eddy-current testing is the standard nondestructivetest,andall tubes of appropriate size shall be eddy-current

tested in accordance with A

3.Tubes that are not of a size suitable for eddy-current test capabilites shall be tested by the hydrostatic test as

described in B ,or by the pneumatic test as described in C

A:Eddy Current Test-Each tube up to 3 8/1 in 【79mm】 in outside diameter shall be subjected to an eddy-current test..

B:Hydrostatic Test -When specified , the tube shall sand,without showing evidence of leakage an internal hydrostatic

pressure to subject the material to a fiber stress of 7000 psi [48MPa],determined by the following equation for thin hollow

cylinders under tension p=2Stl(D-0.8t)

C:Pneumatic Test- - -When specified, the tube shall be subjected to an internal air pressure of 60 psig [400 kPa] minimum

for 5 s without showing evidence of leakage. The test method used shall provide for easy visual detection of any leakage,

such as by immersion of the tube under water or by the pressure differential method. Any evidence of leakage shall be cause

for rejection.

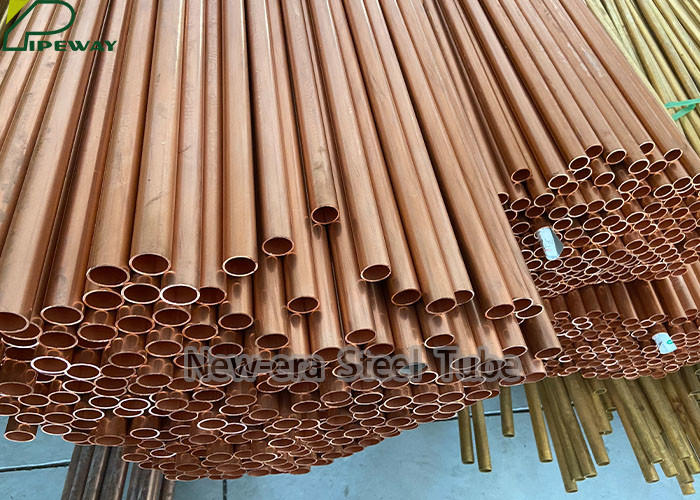

Product picture:


Tags:ASTM B111/B111M,precision Brass Alloy Pipe,Copper seamless tubing,H98,H85,H65,Cooling brass tubes,evaporators brass round pipes,C12000 C12200 C23000 C44300 C60800 C68700 C70600 C71500,Square cpooer,light drawn,heat exchanger,evporators,red brass alloy tubing

Zhejiang New Era Steel Tube Technology Co., Ltd is one of the best seamless steel tube products manufacturer and exporter in china. Our main products include cold drawn and cold rolled seamless steel tubes .We can manufacture non-standard and special application tubes, also according to the international standards as well. Ningbo Pipeway Trade Co.,Ltd is our branch company for all internation business service for our company.

Our Production equipments including 16 cold drawing lines and 22 cold rolled machines:

We have full testing equipments for different kinds of testing for steel tubes:

Our products can produced as DIN,ASTM,ASME,EN,JIS,BS,GB,GOST,ISO etc international standard

Precision steel tubes:DIN2391 st52/A519 4130 4140 1026/EN10305-1 E355+N/EN10305-4 E235+N

Boiler steel tubes:ASTM A192/A179/A210 Gr.A/A213;DIN17175 st35.8/EN10216

Seamless Mechanical tubes: ASTM A519, EN10297-1/EN10210 S355J2H

Wire line Drill Rods:BQ,NQ,HQ,PQ XJY750,XJY850 4130+SR 1541

Oil and Gas line pipes:API 5L Grade B,A106 Gr.B,A53 Gr.B,API 5D

Stainless Steel tubes 304,304L,316,316L

Steel pipes and tube Size range:OD 4-300mm,Wt:0.5-30mm

We have 15 years experience of exporting steel tubes and steel pipes , main exporting to American, Europe, Asian, Australia, Africa .

We have cerficate of ISO9001,TS16949,TUV/PED for different market demand:
