SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes

Ask Lasest Price
Brand Name :	New Era
Model Number :	ASTM A519
Certification :	ISO9001,TS16949
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	3000 tons/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

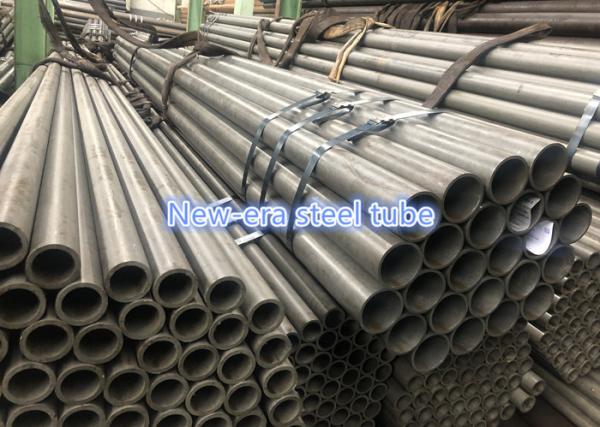

SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes

Product Name: ASTM A519 4130 Seamless Mechanical Alloy Steel Tube
High Strength Alloy Steel Tubes SAE4130 SAE4140

Size Range: OD: 6-256mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: HR, CW, SR, A, N
Application: For mechanical application

Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment: SR, A, N
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.

100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.

Product Name	Alloy Steel Seamless Mechanical Tubing with High Strength
Material	SAE4130, SAE4140, etc
Delivery Condition	HR, CW, SR, A, N
Standard	ASTM A519
Application	Mechanical usage
Certificate	TS16949, ISO 9001
HS code	7304319000
Delivery Time	45 days
Pakcing	Bundles or Woodern Boxes

Grade	C	Mn	P ≤	S ≤	Si	Cr	Mo
1010	0.08--0.13	0.30--0.60	0.40	0.05	--	--	--
1020	0.18--0.23	0.30--0.60	0.40	0.05	--	--	--
1026	0.22--0.28	0.60--0.90	0.40	0.05	--	--	--
1045	0.43--0.50	0.60--0.90	0.40	0.05	--	--	--
4130	0.28--0.33	0.40--0.60	0.04	0.04	0.15--0.35	0.80--1.10	0.15--0.25
4140	0.38--0.43	0.75--1.00	0.04	0.04	0.15--0.35	0.80--1.10	0.15--0.25

Grade	Condition	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	HRB
1020	HR	345	221	25	55
	CW	483	414	5	75
	SR	448	345	10	72
	A	331	193	30	50
	N	379	234	22	60
4130	HR	621	483	20	89
	SR	724	586	10	95
	A	517	379	30	81
	N	621	414	20	89

SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes

Tags: Alloy Steel Tubing, Alloy Steel Tubes, SAE4130 Steel Tubes, SAE4140 Steel Tubing, SAE4130 ASTM A519, Steel Tubes
