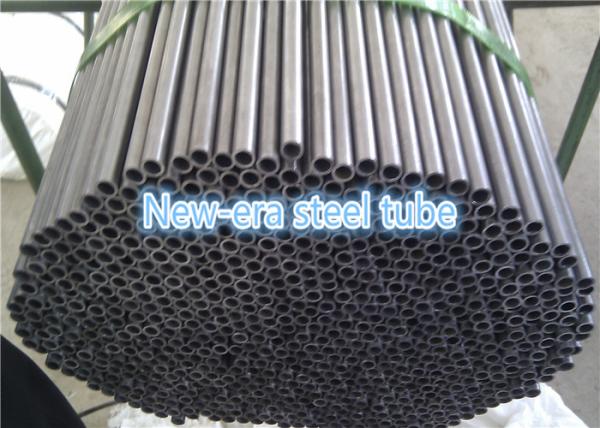

Hydraulic And Pneumatic En 10305-4 Seamless Cold Drawn Pipe

Hydraulic and Pneumatic Seamless Cold Drawn Pipe EN10305-4
Applications:
for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders
Size range: O.D.:6-88mm W.T.:1-15mm L:max12000mm

Production: Cold Drawn

Heat Treatment: +N (Normailzed), Bright Annealing

Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical properties at room temperature
Steel Grade		Minimum values for the delivery condition
Steel Name	Steel Nubmer	(+Cc)		(+LCc)		(+SR)			(+Ad)		(+N) NBK
Steel Name	Steel Nubmer	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290-430	215	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340-480	235	25
E355	1.0580	640	4	580	7	580	450	10	450	22	490-630	355	22

Hydraulic And Pneumatic En 10305-4 Seamless Cold Drawn Pipe

Hydraulic And Pneumatic En 10305-4 Seamless Cold Drawn Pipe

Tags: Hydraulic and Pneumatic Steel Pipe, EN10305-4 Hydraulic Steel Pipe, EN10305-4 Steel Pipe, EN10305-4 E235 +N, Steel Pipe, Precision Seamless Steel Pipe, EN10305-4.
