Automotive Break System Precision Steel Tubing E215 DIN EN10305-1
Seamless,Cold Drawn,Precision Steel-Tube,Round tubing,Cutting tube
parts.
Aluminium Low-Carbon Steel E215,St30Al,08Al.
The Similar Steel Tubes Material: EN1305-1 E215, DIN2391-2
St30Al,GB/T 3639 08Al.
Size Range: OD: 6-128mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: +C, +LC, +SR, +A, +N
Application: For high precision purpose, auto industry, like
manipulator, Shock Absorber, Break system tubing,
Chair tubing,hydraulic tubing.
We offered the Steel Tubes with Stable Quality with Comeptitive
Price and high tolerance
+N(Bright Annealing) Heat Treatment, The steel tubing Surface is
bright and smooth, without oxide scale
The Steel Tubes with Good Extending and Bending Ability.
The Steel Tube Chemical composition:
| Steel Grade | The Tube Steel Chemical Composition |
| Symbol | Standard | C | Si | Mn | P | S | Al |
| Country | Max.% | Max.% | % | Max.% | Max.% | Max.% |
| 08Al | GB/T699 | 0.11 | 0.03 | 0.25～0.50 | 0.025 | 0.025 | 0.02～0.07 |
| St30Al | DIN2391/2 | 0.10 | 0.05 | 0.25～0.55 | 0.025 | 0.025 | 0.02～0.08 |
| E215 | EN10305-1 | 0.10 | 0.05 | 0.25～0.70 | 0.030 | 0.030 | 0.01～0.08 |
E215/St30AL/08AL Seamless Precision Steel Tubes Mechanical
Properties:
| Steel Grade | NBK(+N) | BK(+C) |
| Name | Tensile Rm | Yield ReH | Elogation A | Tensile Rm | Elogation A |
| Mpa | Mpa | ≥ % | Mpa | ≥ % |
| 08Al | 295～430 | ≥195 | 33 | 420～640 | ≥8 |
| St30Al | 290～420 | ≥215 | 30 | 430～640 | ≥8 |
| E215 | 290～430 | ≥215 | 30 | 440～640 | ≥8 |
The Tube Mill Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment:+SR, +A, +N
6. Straightening/Cutting to specified length/Finished Measuring
Inspection
7. Quality Testing in own lab with Tensile Strength, Yield
Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.

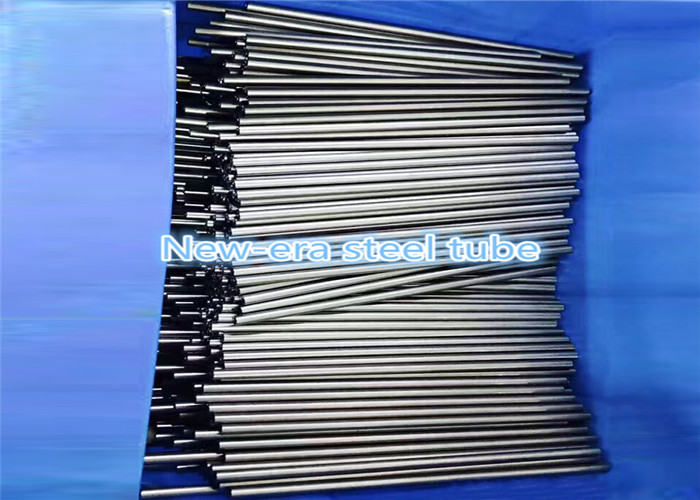

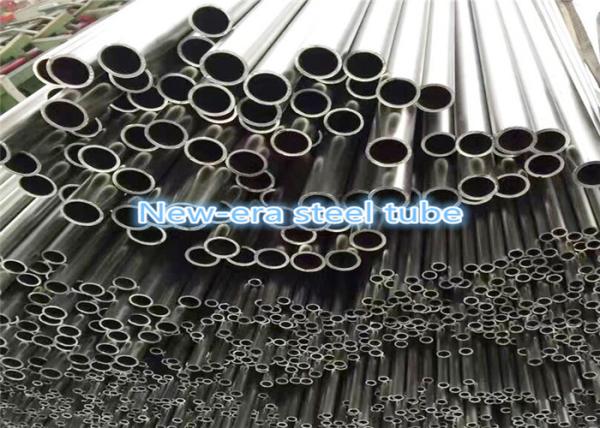

The Steel Tubes and Steel Pipes Pictures:
