ISO10097-1 SAE1541 Wireline Diamond Seamless Mining Drilling Mother Pipes

WLA/WLB/WLN/WLH Diamond Wireline Drilling Rods Core tubes Drilling Inner tubes

and Drilling outer tubes

1.1 General

All Drill Rods and Core Tubes made from seamless cold drawn tubes or cold rolled steel tubes.
All dimensions and tolerances are in millimetres unless otherwise stated and shall be in accordance with Tables 3 to
9 inclusive wireline rock drilling rods.
1.2 Conformity
In those industries where drilling depths are measured in metres, the rod lengths shall be 3 m, 1,5 m or 0,75 m. But
when wireline drilling in conformity with DCDMA and CDDA standards, the lengths of rods may be 3,048 m, 1,524 m or
0,762 m.
1.3 The steel tube Eccentricity
The eccentricity is defined as the distance between the centres of the outer and inner diameters and may not
exceed 10 % of nominal wall thickness Q.
The eccentricity is calculated according to the formula:
Qmax - Qmin/2QnomX100
where Qmax and Qmin are measured values in the same section.

1.4 The Drill Pipes Straightness

When measured over the whole length of the Steel tube by rolling against a straightedge, the maximum deviation shall not

be greater than:

¾ for drill rods 1 in 2 000;

¾ for core tubes 1 in 1 500.

The Diamond Drill rods mother tubes dimension and tolerance as follows:

Materials used in the manufacture of the wireline Drill rods and core tubes specified in this part of

ISO10097-1 shall have the minimum mechanical properties as specified in Table

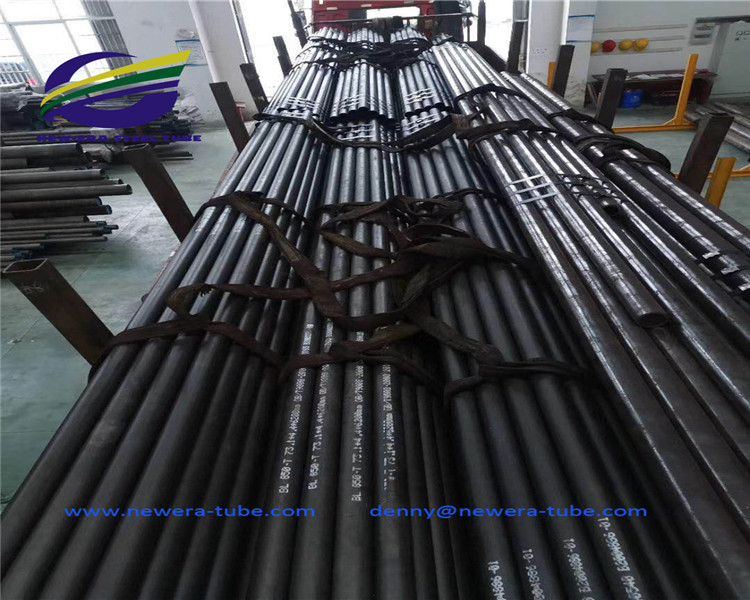

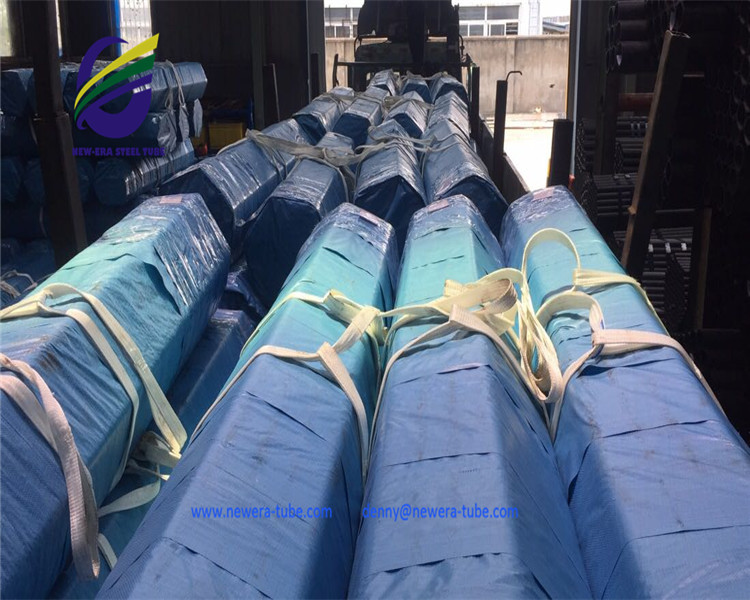

The Products Pictures:

Tags:ISO10097-1 Wireline drilling tubes, Drill outer tubes,Drill Inner tubes,Drill Mother pipes,SAE1541

Zhejiang New Era Steel Tube Technology Co., Ltd is one of the best seamless steel tube products manufacturer and exporter in china. Our main products include cold drawn and cold rolled seamless steel tubes .We can manufacture non-standard and special application tubes, also according to the international standards as well. Ningbo Pipeway Trade Co.,Ltd is our branch company for all internation business service for our company.

Our Production equipments including 16 cold drawing lines and 22 cold rolled machines:

We have full testing equipments for different kinds of testing for steel tubes:

Our products can produced as DIN,ASTM,ASME,EN,JIS,BS,GB,GOST,ISO etc international standard

Precision steel tubes:DIN2391 st52/A519 4130 4140 1026/EN10305-1 E355+N/EN10305-4 E235+N

Boiler steel tubes:ASTM A192/A179/A210 Gr.A/A213;DIN17175 st35.8/EN10216

Seamless Mechanical tubes: ASTM A519, EN10297-1/EN10210 S355J2H

Wire line Drill Rods:BQ,NQ,HQ,PQ XJY750,XJY850 4130+SR 1541

Oil and Gas line pipes:API 5L Grade B,A106 Gr.B,A53 Gr.B,API 5D

Stainless Steel tubes 304,304L,316,316L

Steel pipes and tube Size range:OD 4-300mm,Wt:0.5-30mm

We have 15 years experience of exporting steel tubes and steel pipes , main exporting to American, Europe, Asian, Australia, Africa .

We have cerficate of ISO9001,TS16949,TUV/PED for different market demand:
