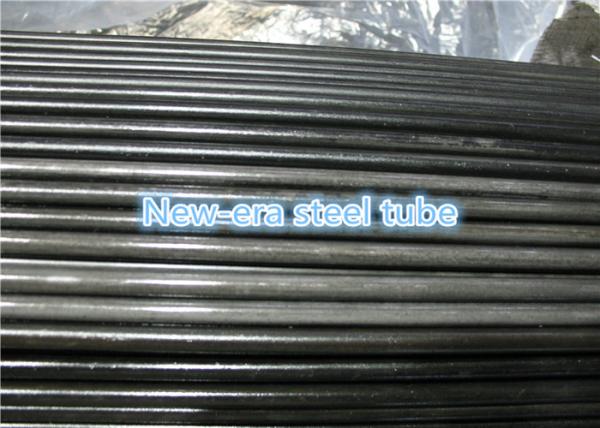

20CrNiMoH/8620H carburizing Alloy steel tube by cold drawn and cold rolled process for anti-friction bearing

Products Description:

20CrNiMoH/8620H properties is a carburing alloy steel specification as ASTM A534/GB3077

Other Related Specifications ASTM A295/A295M DIN EN 10083/3 JIS G4053 DIN17210

Chemical compostion

Mass fraction (%):
Carbon C: 0.17-0.23
Si: 0.17-0.37
Mn: 0.60-0.95
Sulfur s: allowable residual content ≤ 0.035
P: allowable residual content ≤ 0.035
Cr: 0.40-0.70
Ni: 0.25-0.75
Mo: 0.20-0.30
Cu: allowable residual content ≤ 0.30

Mechanical property:
Sample blank size
15mm
[heat treatment]
Quenching temperature (℃): 850; coolant: Oil
Tempering heating temperature (℃): 200; coolant: empty
20CrNiMo round steel
20CrNiMo round steel
Tensile strength σ B (MPA): ≥ 980 (100)
Yield strength σ s (MPA): ≥ 785 (80)
Elongation δ 5 (%): ≥ 9
Reduction of area ψ (%): ≥ 40
Impact energy Akv (J): ≥ 47
Impact toughness value α kV (J / cm2): ≥ 59 (6) Brinell hardness (hbs100 / 3000) (annealing or high temperature tempering state): ≥ 197
Delivery status: delivered in heat treatment (normalizing, annealing or high temperature tempering) or non heat treatment status, which shall be indicated in the contract.
20CrNiMo steel was originally 8620 in American AISI and SAE standards. The hardenability is similar to that of 20crni steel. Although the Ni content of the steel is half of that of 20crni steel, the upper part of the isothermal transformation curve of austenite moves to the right due to the addition of a small amount of Mo element, and the hardenability of the steel is still very good due to the proper increase of Mn content, and the strength is also higher than that of 20crni steel. It is often used to manufacture the gears in the engine and transmission system of small and medium-sized automobiles and tractors; it can also replace 12crni3 steel to manufacture the carburizing parts and cyaniding parts with high core performance, such as the claws and cones of the roller bits used in oil drilling and metallurgical open pit mining. 20CrNiMo is resistant to certain temperature due to its molybdenum content, in addition to its good comprehensive properties. The forging of connecting rod and valve section of gear rotor internal combustion engine used for manufacturing steam turbine.
Delivery status: hot rolled or forged steel shall be delivered in hot-rolled (forged) or annealed state. Cold drawn steel

is delivered in annealed condition.

Delivery Condition: +C, +LC, +SR, +A, +N

Production Size Range:

OD: 10-210mm
WT: 2-30mm
Length: 2-5.8m

Bearing and Gearing Steel Tube Characteristic:
High strength
High-precision
Good Surface Quality
Stable quality
Smooth Roughness

Production Processs:

Seamless Cold Drawn or Seamless Cold Rolled + Heat Treatment or Stress released control

Zhejiang New Era Steel Tube Technology Co., Ltd is one of the best seamless steel tube products manufacturer and exporter in china. Our main products include cold drawn and cold rolled seamless steel tubes .We can manufacture non-standard and special application tubes, also according to the international standards as well. Ningbo Pipeway Trade Co.,Ltd is our branch company for all internation business service for our company.

Our Production equipments including 16 cold drawing lines and 22 cold rolled machines:

We have full testing equipments for different kinds of testing for steel tubes:

Our products can produced as DIN,ASTM,ASME,EN,JIS,BS,GB,GOST,ISO etc international standard

Precision steel tubes:DIN2391 st52/A519 4130 4140 1026/EN10305-1 E355+N/EN10305-4 E235+N

Boiler steel tubes:ASTM A192/A179/A210 Gr.A/A213;DIN17175 st35.8/EN10216

Seamless Mechanical tubes: ASTM A519, EN10297-1/EN10210 S355J2H

Wire line Drill Rods:BQ,NQ,HQ,PQ XJY750,XJY850 4130+SR 1541

Oil and Gas line pipes:API 5L Grade B,A106 Gr.B,A53 Gr.B,API 5D

Stainless Steel tubes 304,304L,316,316L

Steel pipes and tube Size range:OD 4-300mm,Wt:0.5-30mm

We have 15 years experience of exporting steel tubes and steel pipes , main exporting to American, Europe, Asian, Australia, Africa .

We have cerficate of ISO9001,TS16949,TUV/PED for different market demand:
