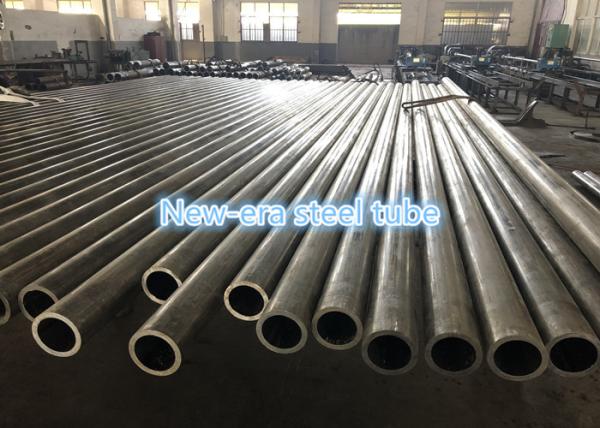

8620H carburizing steel tube by cold drawn and cold rolled process for anti-friction bearing

Products Description:

8620H properties is a carburing alloy steel specification as ASTM A534

Other Related Specifications ASTM A295/A295M DIN EN 10083/3 JIS G4053 DIN17210

Chemical compostion

Carbon C: 0.17-0.23 (allowable deviation: ± 0.02)
Silicon Si: 0.15 ～ 0.35 (allowable deviation: ± 0.03)

Mn: 0.60-0.95 (allowable deviation: ± 0.04)
Sulfur s: ≤ 0.015 (allowable deviation: ± 0.005)
P ≤ 0.025 (allowable deviation: ± 0.005)
Cr: 0.35-0.65 (allowable deviation: ± 0.15)
Ni: 0.35-0.75 (allowable deviation: ± 0.05)

Copper Cu: ≤ 0.30 (allowable deviation: ± 0.05)
Mo: 0.15-0.25 (allowable deviation: ± 0.02)

Mechanical properties:
Tensile strength σ B (MPA): ≥ 1176 (120)

Elongation δ 5 (%): ≥ 9
Reduction of area ψ (%): ≥ 45
Impact toughness value α kV (J / cm2): ≥ 78 (8)
Sample size: 15mm
● heat treatment specification and metallographic structure:

Heat treatment specification: quenching, the first 880 ± 20 ℃, the second 790 ± 20 ℃, oil cooling; tempering, 150-200 ℃, air cooling.
Metallographic structure: martensite.
Delivery status: hot rolled or forged steel shall be delivered in hot-rolled (forged) or annealed state. Cold drawn steel

is delivered in annealed condition.

Delivery Condition: +C, +LC, +SR, +A, +N

Production Size Range:

OD: 10-210mm
WT: 2-30mm
Length: 2-5.8m

Bearing and Gearing Steel Tube Characteristic:
High strength
High-precision
Good Surface Quality
Stable quality
Smooth Roughness

Production Processs:

Seamless Cold Drawn or Seamless Cold Rolled + Heat Treatment or Stress released control

Zhejiang New Era Steel Tube Technology Co., Ltd is one of the best seamless steel tube products manufacturer and exporter in china. Our main products include cold drawn and cold rolled seamless steel tubes .We can manufacture non-standard and special application tubes, also according to the international standards as well. Ningbo Pipeway Trade Co.,Ltd is our branch company for all internation business service for our company.

Our Production equipments including 16 cold drawing lines and 22 cold rolled machines:

We have full testing equipments for different kinds of testing for steel tubes:

Our products can produced as DIN,ASTM,ASME,EN,JIS,BS,GB,GOST,ISO etc international standard

Precision steel tubes:DIN2391 st52/A519 4130 4140 1026/EN10305-1 E355+N/EN10305-4 E235+N

Boiler steel tubes:ASTM A192/A179/A210 Gr.A/A213;DIN17175 st35.8/EN10216

Seamless Mechanical tubes: ASTM A519, EN10297-1/EN10210 S355J2H

Wire line Drill Rods:BQ,NQ,HQ,PQ XJY750,XJY850 4130+SR 1541

Oil and Gas line pipes:API 5L Grade B,A106 Gr.B,A53 Gr.B,API 5D

Stainless Steel tubes 304,304L,316,316L

Steel pipes and tube Size range:OD 4-300mm,Wt:0.5-30mm

We have 15 years experience of exporting steel tubes and steel pipes , main exporting to American, Europe, Asian, Australia, Africa .

We have cerficate of ISO9001,TS16949,TUV/PED for different market demand:
