SCM415 SCM430 SCM435 SCM440 Mechanical Alloy Steel Tubing

Ask Lasest Price
Brand Name :	New Era
Model Number :	ASTM A519
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	3000 tons/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

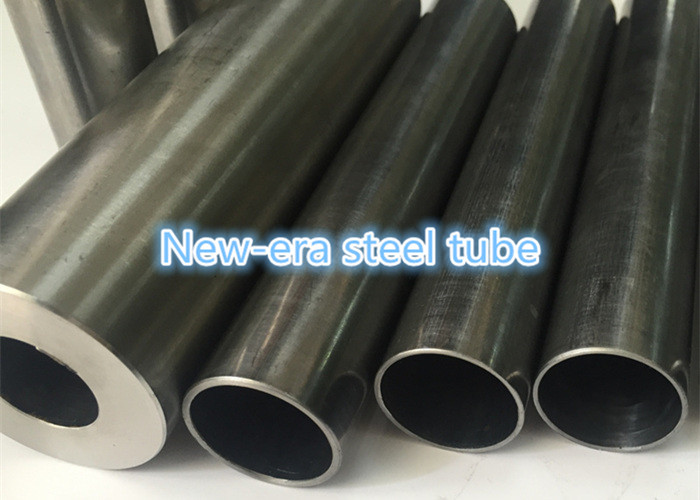

SCM415 SCM430 SCM435 SCM440 Mechanical Alloy Steel Tubing

Product Name: High Precision CDS Alloy Steel Pipe SCM415 SCM430 SCM435 SCM440 Mechanical Alloy Steel Tubing
Material: SCM415 SCM430 SCM435 SCM440, 4130, 4140
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: CW, SR, A, N
Application: mechanical tubing

Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment: SR, A, N
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.

100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.

Product Name	ASTM A519 High Precision Cold Rolled Steel Tube Mechanical Purpose
Material	SCM415,SCM430,SCM435,SCM440,4130, 4140
Delivery Condition	HR, CW, SR, A, N
Standard	JIS G3444 JISG3445 ASTM A519 ASTM A519 DIN EN10305-1
Application	Mechanical and Structural usage
Certificate	TS16949, ISO 9001
HS code	7304319000
Delivery Time	45 days
Pakcing	Bundles or Woodern Boxes

SCM415/SCM430/SCM435/SCM440

Cr-Mo Steel	Material No		C	Si	Mn	P	S	Cr	Mo
Cr-Mo Steel	SCM 415 (SAE 4115)	AP	0.15-0.18	0.15-0.35	0.60-0.85	0.030 max.	0.030 max.	0.90-1.20	0.15-0.30
		NOAP
	SCM 430 (SAE 4130)	AP	0.28-0.33	0.15-0.35	0.60-0.85	0.030 max.	0.030 max.	0.90-1.20	0.15-0.30
		NOAP
	SCM 435 (SAE4135)	AP	0.33-0.38	0.15-0.35	0.60-0.85	0.030 max.	0.030 max.	0.90-1.20	0.15-0.30
		NOAP
	SCM440 (SAE 4140)	AP	0.38-0.43	0.15-0.35	0.60-0.85	0.030 max.	0.030 max.	0.90-1.20	0.15-0.30
		NOAP
