Sa-213t22 T11 T91 High Pressure Steel Tubing Seamless For Boiler Good Performance

Ask Lasest Price
Brand Name :	New Era
Model Number :	ASTM A213
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	3000 tons/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

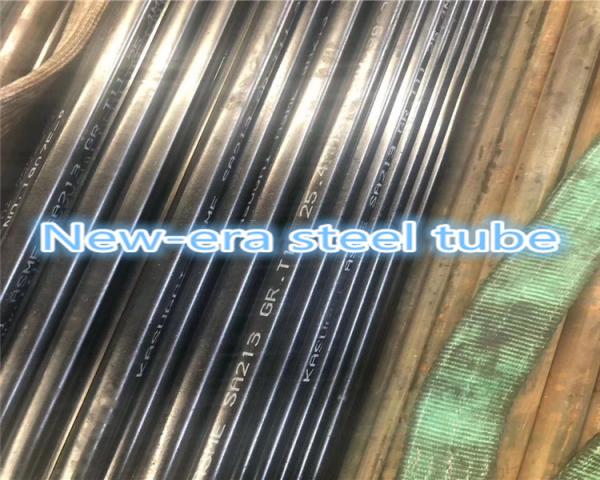

Sa-213t22 T11 T91 High Pressure Steel Tubing Seamless For Boiler Good Performance

SA-213T22 T11 T91 T92 10CrMo910 STBA24 Alloy steel tubes for high pressure boiler application

Size Range: OD: 12.7-114mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m

Stable Quality with Comeptitive Price

High Performance and Longer Working Life Steel Pipe

100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.

Alloy Steel Pipe Heat-Exchanger Tubes SA213 Steel Grades Chemical Composition and Mechanical Properties:

Steel Grade	C	Mn	P	S	Si	Cr	Mo
	max	max	max	max	max	min
T5	0.15	0.30-0.60	0.025	0.025	0.5	4.0-6.0	0.45-0.65
T9	0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.0-10.0	0.90-1.10
T11	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.0-1.50	0.44-0.65
T12	0.05-0.15	0.30-0.61	0.025	0.025	0.50	0.80-1.25	0.44-0.65
T21	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	2.65-3.35	0.80-1.06
T22	0.05-0.15	0.30-0.60	0.025	0.025	0.50	1.90-2.60	0.87-1.13
Steel Grade	Tensile Strength	Yield Strength	Elongation	Hardness.Max
min.ksi [Mpa]	min.ksi [Mpa]	%	Brinell/Vickers	Rockwell
T5b	60[415]	30[205]	30	179HBW/190HV	89HRB
T9	60[415]	30[205]	30	179HBW/190HV	89HRB
T12	60[415]	32[220]	30	163HBW/170HV	85HRB
T91	85[585]	60[415]	20	250HBW/265HV	25HRC
T92	90[620]	64[440]	20	250HBW/265HV	25HRC

Mechanical Properties:

Tensile Strength

Yield Strength

Elongation

Mechanical property requirements do not apply to tubing smaller than 1/8'' (3.2mm) in inside diameter or thinner than 0.015'' (0.4mm) in thickness

Hardness Requirements:

Brinell, Vickers or Rockwell hardness tests shall be made on specimens frrom each lot.

Flattening Test:

One flattening test shall be made on specimens from each end of one finished tube, not the one used for flaring test, from each lot.

Flaring Test:

One flaring test shall be made on specimens from each end of one finished tube, not the one used for flattening test, from each lot

Surface Condition:

Ferritic alloy cold-finished steel tubes shall be free of scale and suitable for inspection. A slight amount of oxidation is not considered scacel.

Ferritic alloy hot-finished steel tubes shall be free of loose scale and suitable for inspection

Stainless steel tubes shall be pickled free of scale. When bright annealing is used, pickling is not necessary.

Any special finish requirement shall be subject to agreement between the customer and our production teams.

Chemical Component:

Grade	C	Mn	P≤	S≤	Si	Cr	Mo	V≥
T11	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	0.50-1.00	1.00-1.50
T12	0.05-0.15	0.30-0.61	0.025	0.025	≤0.50	0.80-1.25	0.44-0.65
T13	0.05-0.15	0.30-0.60	0.025	0.025	≤0.50	1.90-2.60	0.87-1.13
T2	0.10-0.20	0.30-0.61	0.025	0.025	0.10-0.30	0.50-0.81	0.44-0.65
T5	≤0.15	0.30-0.60	0.025	0.025	≤0.50	4.00-6.00	0.45-0.65
T5b	≤0.15	0.30-0.60	0.025	0.025	1.00-2.00	4.00-6.00	0.45-0.65
T5c	≤0.12	0.30-0.60	0.025	0.025	≤0.50	4.00-6.00	0.45-0.65
T9	≤0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.9-1.0
T22	0.05-0.15	0.30-0.60	0.025	0.025	≤0.50	1.90-2.60	0.87-1.13
T91	0.08-0.12	0.30-0.60	0.020	0.010	≤0.50	8-9.50	0.85-1.05	0.18-0.25
T92	0.07-0.13	0.30-0.60	0.020	0.010	≤0.50	8-9.50	0.3-0.60	0.15-0.25
T21	0.05-0.15	0.30-0.60	0.025	0.025	≤0.50	2.65-3.35	0.80-1.06

Mechanical Property:

Steel grade	Tensile(MPa)	Yield(MPa)	Elongate(%)	Hardenss
20MnG	≥415	≥240	≥22
25MnG	≥485	≥275	≥20
15CrMoG	440～640	≥235	≥21
12Cr2MoG	450～600	≥280	≥20
12Cr1MoVG	470～640	≥255	≥21
12Cr2MoWVTiB	540～735	≥345	≥18
10Cr9Mo1VNb	≥585	≥415	≥20
SA210A-1	≥415	≥255	≥30	≤143HB
SA210C	≥485	≥275	≥30	≤179HB
SA213 T11	≥415	≥205	≥30	≤163HB
SA213 T12	≥415	≥220	≥30	≤163HB
SA213 T22	≥415	≥205	≥30	≤163HB
SA213 T23	≥510	≥400	≥20	≤220HB
SA213 T91	≥585	≥415	≥20	≤250HB
SA213 T92	≥620	≥440	≥20	≤250HB
ST45.8/Ⅲ	410～530	≥255	≥21	/
15Mo3	450～600	≥270	≥22
13CrMo44	440～590	≥290	≥22
10CrMo910	480～630	≥280	≥20

OD size tolerance:

OD	Plus tolerance(+)	Minus tolerance (-)
10.29—48.3	0.4	0.4
<48.3—-≤114.3	0.79	0.79

Application:

High pressure, low & medium pressure boiler steel pipestubes are suitable for making

super-heaters, re-heaters, water wall, and economizer in large-scale power plant.
