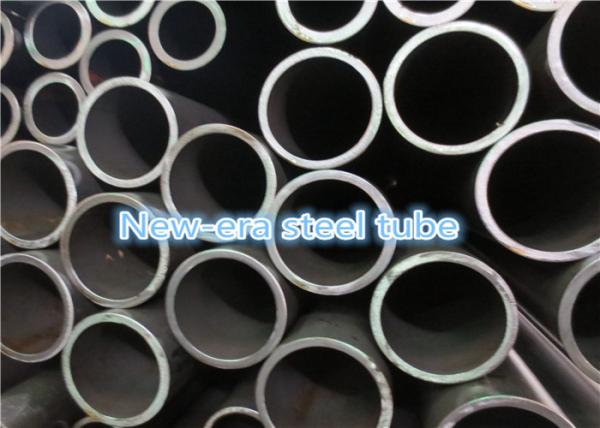

EN 10305-1 E235 E355 St52 Seamless Carbon Steel Hydraulic Cylinder Honed Tube

1. Material: ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45, CK20, 16Mn, 27SiMn etc

2. Standard: DIN2391, EN10305, DIN17175 etc

3. OD: 40-400mm

4. WT: 5-40mm

5. Length: Random (5-7m) or Fixed length as per order of confirmation

6. Polishing: To 0.4Ra Max

7. Supply Condition: BK(+C), BK+S (+SR) 

8. Technology: Honed & SRB (SKIVED AND ROLLER BURNISHED )

9. Tolerance: Inner Diameter: ISO H8
Wall Thickness: Diameter >40, ±0.2mm; Diameter 40-100, ±0.3mm; Diameter >100, ±0.5mm

10. Application: For hydraulic cylinder, swivel crane, injection machine and construction machine application

11. Technique: Cold Drawn seamless

12. Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc

13.

QUALITY CONTROL:

1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up

3. Heating and Hammering End for Cold Drawing

4. Cold Drawing and Cold Rolling, on line inspection

5. Heat Treatment, +A, +SRA, +LC, +N, Q+T

6. Straightening-Cutting to specified length-Finished Measuring Inspection

Zhejiang New Era Steel Tube Technology Co., Ltd is one of the best seamless steel tube products manufacturer and exporter in china. Our main products include cold drawn and cold rolled seamless steel tubes .We can manufacture non-standard and special application tubes, also according to the international standards as well. Ningbo Pipeway Trade Co.,Ltd is our branch company for all internation business service for our company.

Our Production equipments including 16 cold drawing lines and 22 cold rolled machines:

We have full testing equipments for different kinds of testing for steel tubes:

Our products can produced as DIN,ASTM,ASME,EN,JIS,BS,GB,GOST,ISO etc international standard

Precision steel tubes:DIN2391 st52/A519 4130 4140 1026/EN10305-1 E355+N/EN10305-4 E235+N

Boiler steel tubes:ASTM A192/A179/A210 Gr.A/A213;DIN17175 st35.8/EN10216

Seamless Mechanical tubes: ASTM A519, EN10297-1/EN10210 S355J2H

Wire line Drill Rods:BQ,NQ,HQ,PQ XJY750,XJY850 4130+SR 1541

Oil and Gas line pipes:API 5L Grade B,A106 Gr.B,A53 Gr.B,API 5D

Stainless Steel tubes 304,304L,316,316L

Steel pipes and tube Size range:OD 4-300mm,Wt:0.5-30mm

We have 15 years experience of exporting steel tubes and steel pipes , main exporting to American, Europe, Asian, Australia, Africa .

We have cerficate of ISO9001,TS16949,TUV/PED for different market demand:
