ASTM A513 DOM Precision Welded Tubes

Ask Lasest Price
Brand Name :	New Era
Model Number :	ASTM A513
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	5000 tons/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

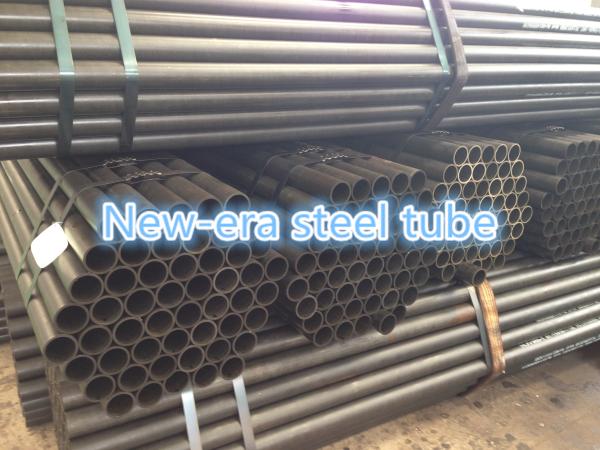

ASTM A513 DOM Precision Welded Tubes

4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing

Quick detail

Material	1020 1010 etc
Standard	ASTM A513
Production method	Welded+cold drawn

Products Description:
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing

DOM Steel Pipe

Steel Grade/Steel Material:
SAE1020 1020 Q235B etc carbon steel

Chemical composition :

	C max	Mn max	Si max	P max	S max
SAE1020	0.18-0.23	0.30-0.60		0.040	0.040
Q235B	0.20	1.4	0.35	0.045	0.045

Delivery Condition:
BK, BKW, BKS, GBK, NBK

Size Range:
OD: 4.0-420mm
WT:0.5-50mm
Length: max 12000mm
Our regularproduction size
125mm 139mm OD

Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness

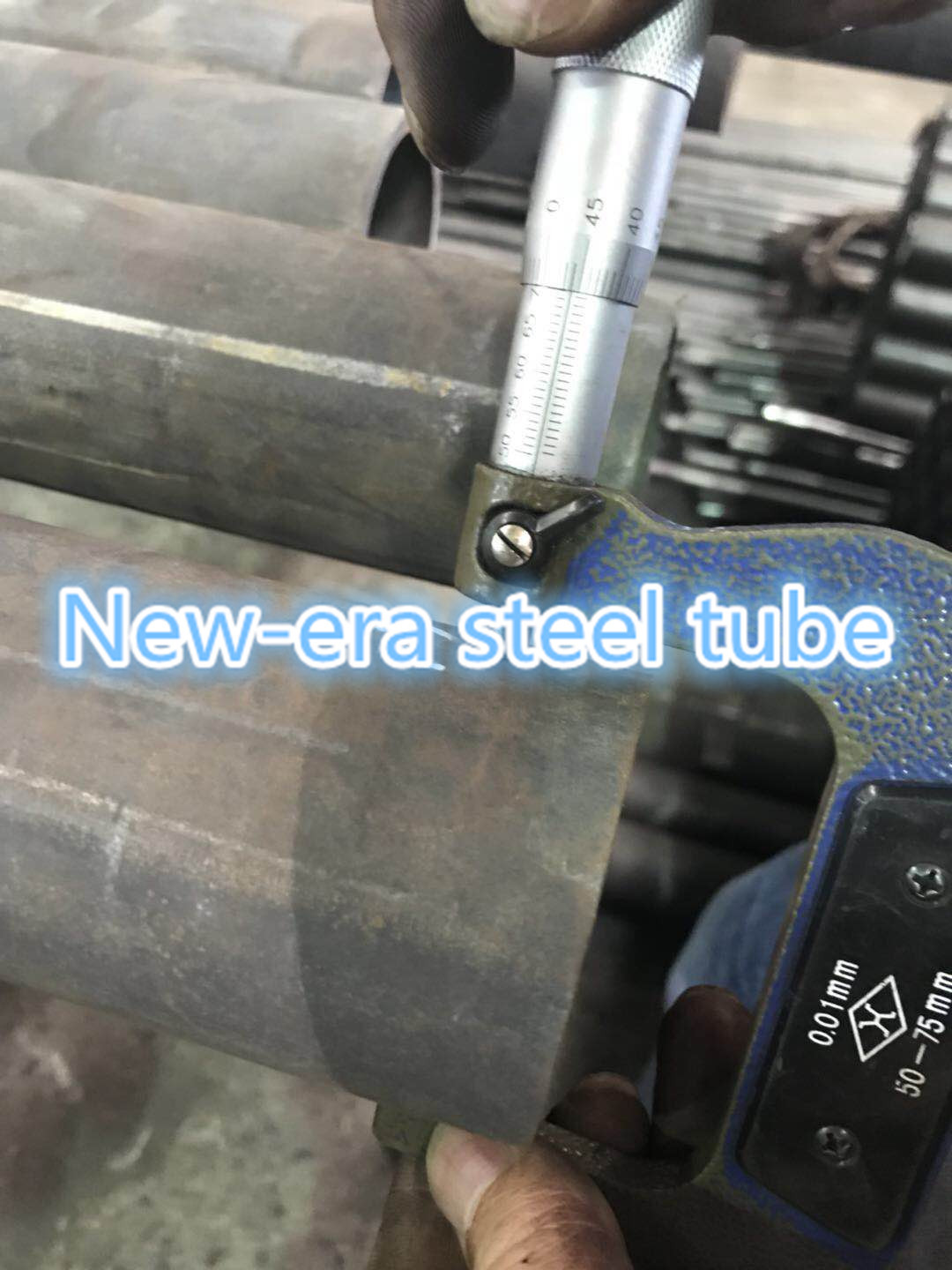

TORICH QUALITY ASSURANCE
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing
Production Processs:
ERW tube and Cold Drawing or Cold Rolling Production

Raw Material ERW Tube:
