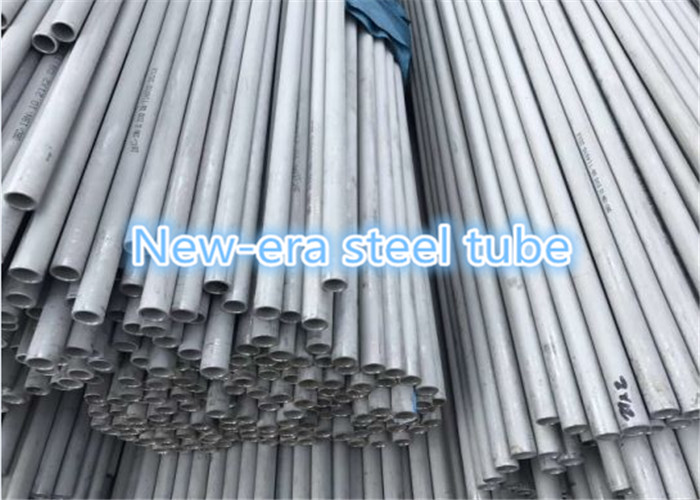

316 304 Thin Wall Seamless Stainless Steel Tubes Small Diameter Round Shape

Ask Lasest Price
Brand Name :	New-Era
Model Number :	ASTM A269
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	300tons per month
Delivery Time :	45-50days

Add to Cart

Product Details
Company Profile

316 304 Thin Wall Seamless Stainless Steel Tubes Small Diameter Round Shape

Product Description

TORICH 316 304 Medical Sanitary Food Grade Pipe Welded Small Diameter Thin Wall Round Seamless Stainless Steel Capillary Tube

Standard	ASTM A554, A249, A269 and A270, A312
Matrial	201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%), 301(Ni 5%), 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430
Size	OD: 0.5mm--8mm WT: 0.08mm - 2mm Length: According to Customer's Requirement
Surface Finish	180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish
Test and Inspection	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Application	Decoration construction, upholstery, industry instrument

Tolerance
a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm

QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

316 304 Thin Wall Seamless Stainless Steel Tubes Small Diameter Round Shape
