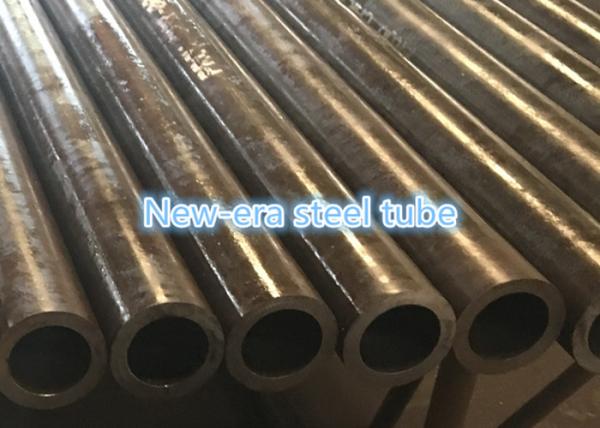

High Temperature Seamless Line Pipe Structural 6 - 323mm OD Size A106 Standard

Ask Lasest Price
Brand Name :	New Era
Model Number :	ASTM A106
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	3000 tons/month
Delivery Time :	45 days
MOQ :	5 tons

Add to Cart

Product Details
Company Profile

High Temperature Seamless Line Pipe Structural 6 - 323mm OD Size A106 Standard

Standard: ASTM A106 GrB Seamless Steel Pipe , High Temperature Carbon Structural Line Pipe
Application: For high temperature service and structural application.
Size(mm): O. D.: 6.0~323.0 W. T.: 1~30 L: Max 12000

Delivery condition: Hot rolled, Cold worked, Annealed, Normalized, Stress Released
Certificate: ISO9001 TUV

Product Name	ASTM A106 Seamless Line Pipe for High pressure service
Material	GR A , GR B, GR C
Standard	ASTM A106
Size Range	OD: 6-323mm, WT: 1-30mm
Application	High Pressure Service
Round Billet	Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel
Keyword	Seamless Line Pipes
Certificate	ISO 9001
HS code	7304319000
Delivery Time	45 days
Packing	Bundles or Wooden Boxes

Grade	C≤	Mn	P≤	S≤	Si≥	Cr≤	Cu≤	Mo≤	Ni≤	V≤
A	0.25	0.27-0.93	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08
B	0.30	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08
C	0.35	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08

Mechanical Properties:

Grade	TensileStrength Rm (Mpa)	Yield Point (Mpa)	Elongation A %	Delivery Condition
A	≥ 330	≥ 205	20	Annealed
B	≥ 415	≥ 240	20	Annealed
C	≥ 485	≥ 275	20	Annealed

Dimension Tolerances:

Pipe Type	Pipe Sizes		Tolerances
Cold Drawn	OD	≤ 48.3mm	± 0.40mm
		≥ 60.3mm	± 1%mm
	WT		± 12.5%
