DIN 2393 Precision Welded Steel Pipe

Ask Lasest Price
Brand Name :	New Era
Model Number :	DIN2393
Certification :	ISO9001,TS16949
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	3000 tons/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

DIN 2393 Precision Welded Steel Pipe

1. Product Name: DIN2393 Precision Welded Cold Drawn Steel Tube for Automobile Industry
2. Size Range: OD: 6-88mm, WT: 1-10mm, Length: 5.8m/6m, maximal 11.8m
3. Stable Quality with Comeptitive Price
4. Good Extending and Bending Ability

Product Name	DIN2393 Precision Welded Cold Drawn Steel Tube
Material	RSt34-2, RSt37-2, St44-2, St52-3
Delivery Condition	BK, BKW, BKS, GBK, NBK
Standard	DIN2393
Size Range	OD: 6-88mm, WT: 1-10mm
Application	High precision purpose, auto parts, oil cylinder, etc
Round Billet	Bao Steel, Xingcheng Steel, Zhongtian Steel
Keyword	DIN2393 Welded Steel Tube
Certificate	TS16949, ISO 9001
HS code	7304319000
Delivery Time	45 days
Pakcing	Bundles or Woodern Boxes

Steel Grade		Chemical Composition
Symbol	Material Number	C Max.	Si Max.	Mn Max.	P Max.	S Max.
RSt34-2	1.0034	0.15	0.30	0.60	0.025	0.025
RSt37-2	1.0038	0.17	0.30	0.70	0.025	0.025
St44-2	1.0044	0.21	0.30	1.10	0.025	0.025
St52-3	1.0570	0.22	0.55	1.60	0.025	0.025

Steel Grade		BK		BKW		BKS
Name	No.	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
RSt34-2	1.0034	460	6	410	12	410	305	16
RSt37-2	1.0038	490	6	440	10	440	325	14
St44-2	1.0044	560	5	510	8	510	375	12
St52-3	1.0570	640	4	590	6	590	435	10

Steel Grade		GBK		NBK
Name	No.	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
RSt34-2	1.0034	300	28	310--410	205	28
RSt37-2	1.0038	315	25	340--470	235	25
St44-2	1.0044	390	21	410--540	255	21
St52-3	1.0570	490	22	490--630	355	22

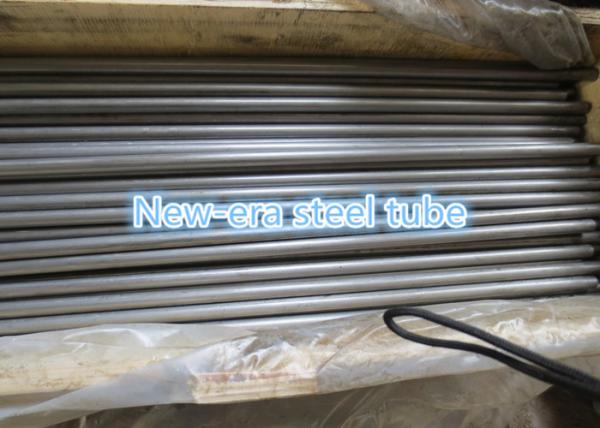

DIN 2393 Precision Welded Steel Pipe

FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
