ASTM A513 Type5 DOM Round Steel Tuing

Ask Lasest Price
Brand Name :	New Era
Model Number :	ASTM A513 Type5 DOM
Certification :	ISO9001,TS16949
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	3000 tons/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

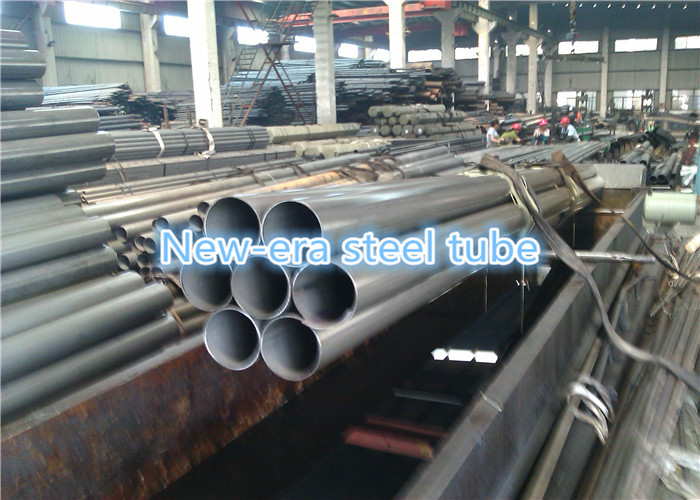

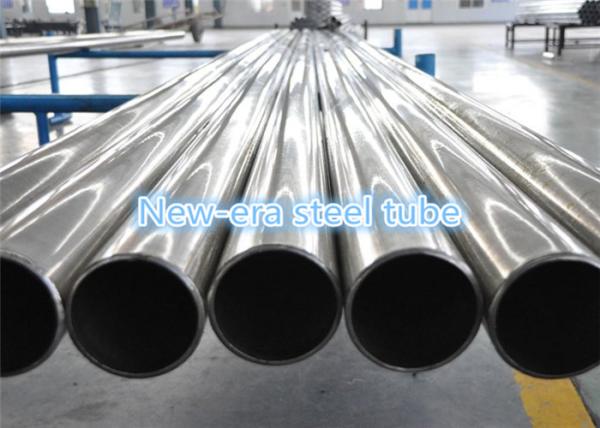

ASTM A513 Type5 DOM Round Steel Tuing

Product Name: DOM Round Steel Tube Drawn Over a Mandrel ASTM A513 Type5 for Stressful Application
Size(mm): O. D.: 6.0-168.0 W. T.: 1.0-15.0mm L: Max 12000mm

DOM mechanical tubing is manufactured to ASTM Specification A513

This product has tensile properties that are comparable to cold-drawn seamless steel tubing of the same steel analysis and nominal size. In addition, the DOM tubing has superior concentricity and a high degree of uniformity in wall thickness.

DOM Steel Tubing, is a welded mechanical round steel tube with the internal weld seam removed creating a smooth internal surface. DOM round steel tube has been drawn over a mandrel to produce a tube having more exact dimensional accuracy and tolerances, and a very smooth insde and outside finish. DOM steel tubing is ideal for more stressful applications requiring higher quality, increased mechanical porperties, uniformity, strength, and soundness.

Specifications: ASTM A513 type 5, 1020, 1045, 4130 mechanical grade

Applications: race car frames, roll cages, motorcycle frames,spindles, rollers, shafts, engine mounts, bushings, cylinders, telescoping, etc.

Workability: Easy to weld, cut, form and machine.

High Quality and Competitive Price. Welcome to contact us.

Product Name	ASTM A513 Dom Type 5 Mechanical Steel Tubing
Material	1020.1026,1045,4130,4140
Delivery Condition	HR,CW,SR,A,N
Standard	ASTM A513
Size Range	OD: 6-168mm, WT: 1-15mm
Production Process	Drawn over a mandrel
Round Billet	Bao Steel, Xingcheng Steel, Zhongtian Steel
Keyword	DOM Steel Tubing
Certificate	TS16949, ISO 9001
Surface	Clean
Delivery Time	45 days
Pakcing	Bundles or Woodern Boxes

Steel Grade	C Max	Mn	P Max	S Max	Si Max	Cr Max	Mo
1008	0.10	0.30-0.50	0.035	0.035	-	-	-
1010	0.08-0.13	0.30-0.60	0.035	0.035	-	-	-
1018	0.14-0.20	0.60-0.90	0.035	0.035	-	-	-
1020	0.18-0.23	0.30-0.60	0.035	0.035	-	-	-
1026	0.22-0.28	0.60-0.90	0.035	0.035	-	-	-
1035	0.32-0.38	0.60-0.90	0.035	0.035	-	-	-
1045	0.37-0.44	0.60-0.90	0.035	0.035	-	-	-
4130	0.28-0.33	0.40-0.60	0.035	0.035	0.15-0.35	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.035	0.035	0.15-0.35	0.80-1.10	0.15-0.25

Mechanical Properties:

Steel Grade	Yield Strength		Tensile Strength		Elongation	RB	RB
Steel Grade	Ksi	Mpa	ksi	Mpa	%	min	max
Sink-Drawn Tubing
1008	38	262	48	331	8	65
1010	40	276	50	345	8	65
1020	50	345	60	414	8	70
1026	55	379	70	483	7	77
1035	70	483	80	552	7	82
4130	50	345	70	483	20	100
4140	65	448	90	621	20	105

Steel Grade	Yield Strength		Tensile Strength		Elongation	RB	RB
Steel Grade	Ksi	Mpa	ksi	Mpa	%	min	max
Normalizing Tubing
1008	23	159	38	262		30	65
1010	25	172	40	276		30	65
1020	35	241	50	345		25	75
1026	40	276	60	414		25	80
1035	45	310	65	448		20	85

Steel Grade	Yield Strength			Tensile Strength		Elongation	RB	RB
Steel Grade	Ksi	Mpa		ksi	Mpa	%	min	max
Mandrel-DrawnStress-Relieved Tubing
1008	45		310	55	379	12		68
1010	45		310	55	379	12		68
1020	55		379	65	448	10		75
1026	65		448	75	517	10		80
1035	75		517	85	586	10		85
4130	80		552	90	621	10		87
4140	95		655	105	724	10		90

ASTM A513 Type5 DOM Round Steel Tuing
