10Cr17Ni13Mo2Ti 316Ti Seamless Stainless Steel Tubes GOST9941

Ask Lasest Price
Brand Name :	New-Era
Model Number :	GOST9941-1981
Certification :	ISO9001, ISO14001, TS16949
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	500tons per month
Delivery Time :	35-45days

Add to Cart

Product Details
Company Profile

10Cr17Ni13Mo2Ti 316Ti Seamless Stainless Steel Tubes GOST9941

10Cr17Ni13Mo2Ti stainless 316Ti Seamless Stainless Steel Pipes as GOST9941

Materials:10Cr17Ni13Mo2Ti ,316Ti,08Cr18Ni10Ti,TP321,F321,TP304,TP316,TP316L

Application:For Stainless boiler tubes,pressure line stainless pipes.

1. Commodity: 10Cr17Ni13Mo2Ti stainless 316Ti Seamless Stainless Steel Pipes as GOST9941

2. Process method: seamless cold and warm-deformed stainless tubes
3. Surface finish: annealing, pickling and polishing as required
4. Material Grades: 08Cr18Ni10Ti,TP321,F321,TP304,TP316,TP316L
5. Specifications: ASTM A789,ASME SA/A789, SA/A790, EN10216-5, etc.
6. Size:
A) NPS: 1/8" to 6"
B) Schedule: 10S, 40/40S, 80/80S, 120, 160, XS, XXS
C) O. D.: 6 mm to 500 mm
D) W. T.: 0.5 mm to 30 mm
E) Length: Max. 25 meters
7.Packaging: seaworthy wooden case/steel framed plywood case/bundles packaging depending on products,

destination,method of shipment and client requirement
8. Certificate: ISO 9001:2008, PED ASME,Materials certificate as EN10204.3.1B

Chemical compostion of 08Cr18Ni10Ti stainless steel pipes:

10Cr17Ni13Mo2Ti 316Ti Seamless Stainless Steel Tubes GOST9941

About the other stainless steel pipes that we are suppling:

Stainless Steel Mechanical Properties
Grade		Tensile Strength	Yide Strength	Elogation	Hardness	Solution Annealing
Grade		kgf/mm²(N/mm²)	kgf/mm²(N/mm²)	%	HRB(HV)	ºC
ASTM	TP 304	≥53 (515)	≥21 (205)	≥35	≤90 (200)	1040ºC-1150ºC Water Quenching
	TP 304L	≥50 (485)	≥17 (170)
	TP 316	≥53 (515)	≥21 (205)
	TP 316L	≥50 (485)	≥17 (170)
JIS	SUS 304	≥53 (520)	≥21 (205)			1010ºC-1150ºC Water Quenching
	SUS 304L	≥49 (480)	≥18 (175)
	SUS 316	≥53 (520)	≥21 (205)
	SUS 316L	≥49 (480)	≥18 (175)
GB	06Cr19Ni10	≥53 (520)	≥21 (210)			1010ºC-1150ºC Water Quenching
	022Cr19Ni10	≥49 (480)	≥18 (180)
	06Cr17Ni12Mo2	≥53 (520)	≥21 (210)
	022Cr17Ni12Mo2	≥59 (480)	≥18 (180)
EN	1.4301	(500-700)	≥20 (195)	≥40		1000ºC-1100ºC Water Quenching
	1.4307	(470-670)	≥18 (180)			1000ºC-1100ºC Water Quenching
	1.4401	(510-710)	≥21 (205)			1020ºC-1120ºC Water Quenching
	1.4404	(490-690)	≥19 (195)			1020ºC-1120ºC Water Quenching

Stainless Steel Heat Exchanger Tube
Standard	OD(mm)	WT(mm)	Length(meters)	Grade
ASTM A249, ASTM A269, EN 10217-7	15.88 to 114.3	0.3 to 4.0	Up to 18.3 meter	1.4301, 1.4306, 1.4404, AISI 304/304l/316l, S31803/S32205, etc
Standard	Outside Diameter		Thickness	Length
ASTM A249 (A1016)	<25.4	±0.10	±10%S	OD<50.8+3-0 OD≥50.8+5-0
	≥25.4~<38.1	±0.15
	≥38.1~<50.8	±0.20
	≥50.8~<63.5	±0.25
	≥63.5~<76.2	±0.31
ASTM A269 (A1016)	<38.1	±0.13	OD<12.7±15% OD≥12.7±10%	OD<38.1+3.2-0 OD≥38.1+4.8-0
	≥38.1~<88.9	±0.25
	≥88.9~<139.7	±0.38

Chemical Composition	Tensile Strength	Yield Strength	Elongation	Hardness HRB
Grade 304 Stainless Steel (100% & MPA)
C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20	≥515	≥205	≥40	≤92
Grade 304L Stainless Steel (100% & MPA)
C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20	≥485	≥170	≥40	≤92
Grade 316L Stainless Steel (100% & MPA)
C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18	≥485	≥170	≥40	≤95

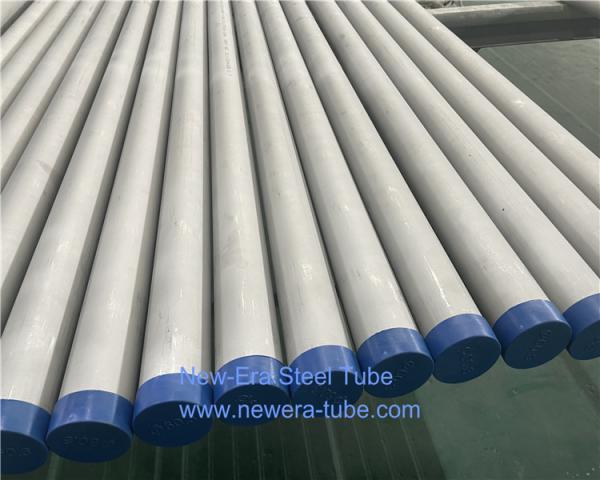

The 10Cr17Ni13Mo2Ti stainless steel tubes for boiler application pictures:

Tags:10Cr17Ni13Mo2Ti stainless steel pipes,GOST9941-1981 stainless steel tubes,316Ti stainless,

seamless stainless tubes
